Electrical Busbar Trunking Compact Aluminum Bus Duct For Sale

Name: Electrical Busbar Trunking Compact Aluminum Bus Duct For Sale
Brand: BZIDA
Price: 1 USD

China Electrical Busbar Trunking Compact Aluminum Bus Duct For Sale factory

Certification : ISO9001

Place of Origin : Langfang, Hebei, China

Rated Current : 200 - 6300 A

Application : Outdoor, Industrial, Electric Power Transmission

Surface treatment : Housing aluminum alloy/conductor TMY copper

Frequency : 50-60Hz

Degree of protection : IP54/IP66

Rated Voltage : 690 V, 1000V

Working Temperature : -40℃~+80℃

Type : Power Busways

Rated frequency : 50Hz--60Hz

Brand Name : BZIDA

MOQ : 50 meters

Packaging Details : Export standard compliant

Delivery Time : 30 days

Payment Terms : 30% prepayment, full payment upon delivery

Supply Ability : 3000 meters per month

Contact Now

Factory Price Bus Duct Trunking System Compact Busbar System

Product Description:

Bus ducts can be divided into three types according to insulation methods: air type plug-in bus ducts, dense insulation plug-in bus ducts, and high-strength plug-in bus ducts. According to its structure and purpose, it can be divided into dense insulation, air insulation, air additional insulation, fire-resistant, resin insulation, and sliding contact busbar trunking; According to its shell material, it is divided into steel shell, aluminum alloy shell, and steel aluminum mixed shell bus duct.

Features:

1. Bus ducts use copper or aluminum as conductors, which have extremely high conductivity and can efficiently transmit large currents, meeting the needs of large-scale power transmission.

2. The bus duct is protected by a metal shell, which has good mechanical strength and electromagnetic shielding performance. At the same time, the internal conductors are wrapped with high-quality insulation materials, effectively preventing safety hazards such as short circuits and leakage.

3. The bus duct adopts modular design, which is easy to install, disassemble and expand. Its connection method is flexible and versatile, and can be customized and adjusted according to actual needs.

4. The bus duct has a compact structure and small volume, which can provide higher transmission capacity in limited space. Greatly saving installation space and reducing the cost of electrical engineering.

5. The maintenance of bus ducts is relatively simple and convenient. The connection part adopts bolt fastening or plug-in design, which is easy to disassemble and replace.

Technical Parameters:

Implementation Standard	IEC/EN 60 439-6, GB7251.1
Ambient Temperature	-25/+40/+35 (Outdoor Type -40/+40/+35)
Altitude	≤2000m
Relative Humidity	No more than 50% at a maximum temperature of 40℃, and no more than 90% at 20℃.
Ingress Protection (IP) Rating	IP54, IP66, IP68
Rated Operating Voltage (Ue)	AC1000V/690V
Rated Frequency	50/60Hz
Enclosure Material/Surface Treatment	Aluminum Alloy / Powder Coating
Voltage Category / Pollution Degree	III/3
Horizontal Mounting Spacing	≤ 2m

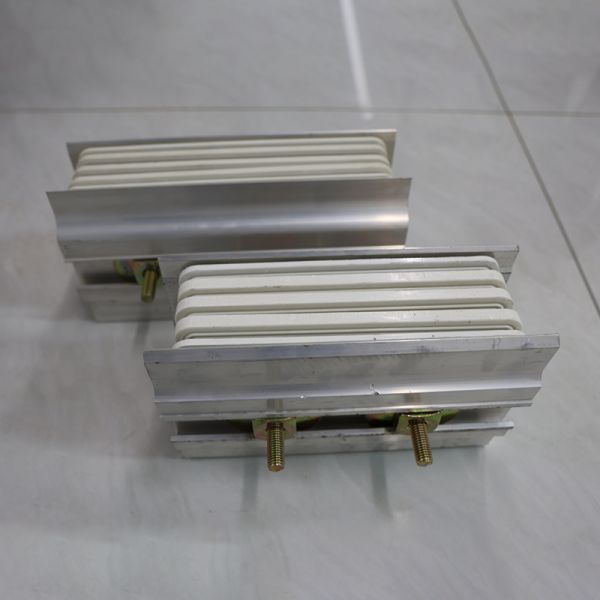

Electrical Busbar Trunking Compact Aluminum Bus Duct For Sale

FAQ:

1.Are you a trade company or a manufacturer?

Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.

2.What are the main products of your company?

Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.

3.How do you ensure the quality of your products?

We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.

4.Do you offer customization services?

Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.

5.Can you print our brand on the product?

Yes, of course, we also do OEM to print client’s brand on the product
