Copper Aluminium Electrical Busbar System Power Distribution Busway Equipment

Name: Copper Aluminium Electrical Busbar System Power Distribution Busway Equipment
Brand: BZIDA
Price: 1 USD

China Copper Aluminium Electrical Busbar System Power Distribution Busway Equipment factory

Certification : ISO9001

Place of Origin : Langfang, Hebei, China

Rated Current : 200 - 6300 A

Application : Outdoor, Industrial, Electric Power Transmission

Surface treatment : Housing aluminum alloy/conductor TMY copper

Conductor material : Copper or aluminum

Degree of protection : IP54/IP66

Rated Voltage : 690 V, 1000V

Working Temperature : -40℃~+80℃

Rated frequency : 50Hz--60Hz

Brand Name : BZIDA

MOQ : 50 meters

Packaging Details : Export standard compliant

Delivery Time : 30 days

Payment Terms : 30% prepayment, full payment upon delivery

Supply Ability : 3000 meters per month

Contact Now

High Quality Copper Aluminium Busbar System Hot Sale Busway Power Distribution Equipment

Product Description:

1. The copper bars of the dense bus duct conductors comply with the national standard for tin plating on the entire surface of the copper bars. The purity requirement for copper bars is ≥ 99.95%, conductivity ≥ 98.6%, reactance ≤ 0.00032 Ω mm2/m, and hardness HB ≥ 65.

2. The material, cross-section, and manufacturing process of the neutral wire in the trunking are the same as those of the phase wire. The equivalent cross-section of the neutral wire should be equal to 100% of the equivalent cross-section of the phase wire.

3. In terms of shell material, in order to ensure the strength and rigidity of the dense bus duct system, the shell of the bus duct system should be made of cold-rolled galvanized steel sheet with a thickness of not less than 3mm or high-quality aluminum magnesium alloy shell; Has certain resistance to mechanical impact, and the corrugated side plate of the aluminum alloy shell has certain heat dissipation characteristics

4. The grounding conductor is equivalent, and the cross-sectional area should not be less than 50% of the equivalent cross-sectional area of the phase line busbar for grounding.

Features:

1. Bus ducts use copper or aluminum as conductors, which have extremely high conductivity and can efficiently transmit large currents, meeting the needs of large-scale power transmission.

2. The bus duct is protected by a metal shell, which has good mechanical strength and electromagnetic shielding performance. At the same time, the internal conductors are wrapped with high-quality insulation materials, effectively preventing safety hazards such as short circuits and leakage.

3. The bus duct adopts modular design, which is easy to install, disassemble and expand. Its connection method is flexible and versatile, and can be customized and adjusted according to actual needs.

4. The bus duct has a compact structure and small volume, which can provide higher transmission capacity in limited space. Greatly saving installation space and reducing the cost of electrical engineering.

5. The maintenance of bus ducts is relatively simple and convenient. The connection part adopts bolt fastening or plug-in design, which is easy to disassemble and replace.

Technical Parameters:

Implementation Standard	IEC/EN 60 439-6, GB7251.1
System	Three-phase three-wire, Three-phase four-wire, Three-phase five-wire (with separate PE busbar), Three-phase five-wire (with casing as PE)
Ambient Temperature	-25/+40/+35 (Outdoor Type -40/+40/+35)
Altitude	≤2000m
Relative Humidity	No more than 50% at a maximum temperature of 40℃, and no more than 90% at 20℃.
Rated Operating Voltage (Ue)	AC1000V/690V
Rated Frequency	50/60Hz
Conductor Material	Tin-Plated Copper or/Tin-Plated Copper-Clad Aluminum/Aluminum
Voltage Category / Pollution Degree	III/3
Horizontal Mounting Spacing	≤ 2m

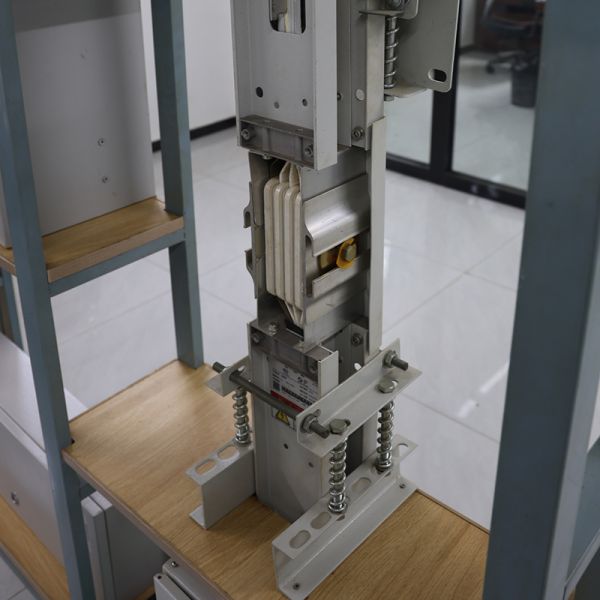

Copper Aluminium Electrical Busbar System Power Distribution Busway Equipment

FAQ:

1.Are you a trade company or a manufacturer?

Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.

2.What are the main products of your company?

Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.

3.How do you ensure the quality of your products?

We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.

4.Do you offer customization services?

Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.

5.Can you print our brand on the product?

Yes, of course, we also do OEM to print client’s brand on the product
